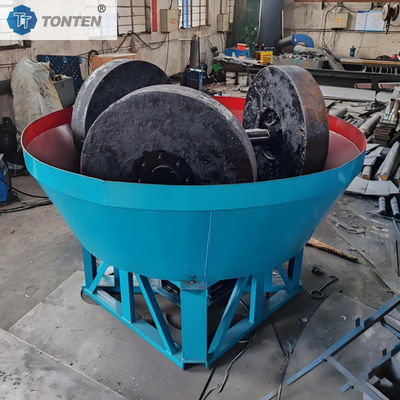

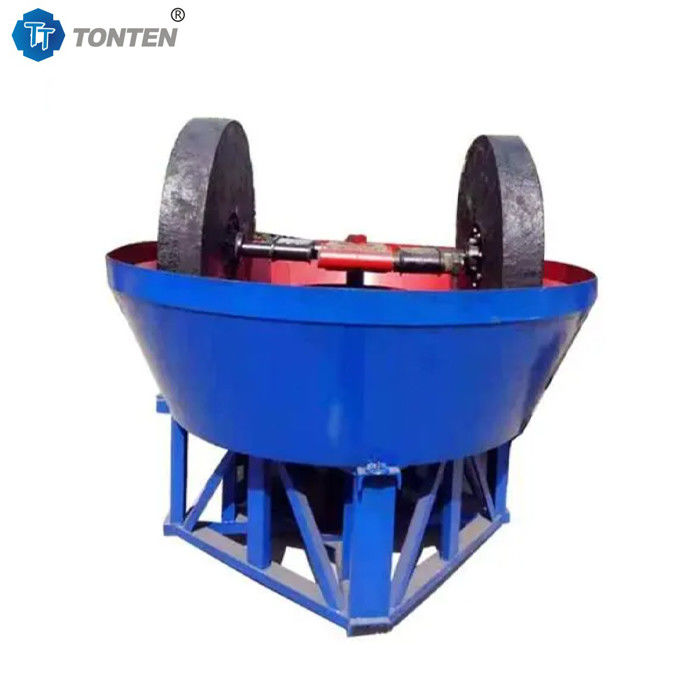

Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | TONTEN |
| Numer modelu: | TT-1500 |
Zapłata:
| Minimalne zamówienie: | 1 zestaw |
|---|---|
| Cena: | Negocjowalne |
| Szczegóły pakowania: | Eksportuj standardowe opakowanie lub pojemnik na drewniane pudełka |
| Czas dostawy: | 7-10 dni roboczych |
| Zasady płatności: | T/t |
| Możliwość Supply: | 20 zestawów miesięcznie |
|
Szczegóły informacji |
|||
| Średnica wałka: | 1500 mm | Średnica tarczy szlifierskiej: | 2000 mm |
|---|---|---|---|
| Przetwarzanie: | 0,8-1,5 TPH | Moc: | 22 kW |
| Prędkość: | 12r/min | Complete Maszyna: | 9500kg |
| Zasada: | Szlifowanie kół | Odpowiedni: | Złoto, srebro i inne rzadkie i szlachetne minerały metali |
opis produktu
Zimbabwe Round Grinding Gold Pan Mill Gold Grinding Machine Price
Introduction:
Gold round grinder is a device used to finely grind and process gold ore or metal materials. It plays a vital role in the gold extraction and smelting processes. Gold grinders typically grind the ore through mechanical friction and impact. The machine contains a roller and a plate, which gradually grind the ore under the pressure of the rollers. It utilizes a rotary motion, achieving grinding through the combined motion of the rollers' orbital and rotational motion. Combined with tools such as mercury separation or a gold catching cloth, this improves precious metal recovery. TONTEN gold grinding machines utilize an electric drive, offering increased efficiency and suitability for large-scale production.
Applications:
Mining: Used for preliminary processing and fine grinding of gold ore to improve gold recovery.
Metallurgy: Used in the metal smelting process to pre-treat ore for subsequent smelting steps.
Jewelry: Used for the recovery and reprocessing of scrap metal.
Features:
1. Utilizing a double-roller or multi-roller design, the rollers and plate are cast in a single-piece process, incorporating special wear-resistant materials for exceptional wear resistance and durability.
2. Compact structure, easy assembly and disassembly, safe and reliable use.
3. High efficiency: Quickly grinds ore into fine powder, significantly improving production efficiency.
4. When the roller wears out, only the outer ring needs to be replaced, while the main components can be used for a long time.
Specification:
|
Model
|
Feeding size
(mm)
|
Output size
(mm)
|
Capacity
(t/h)
|
Speed
(r/min)
|
Motor power
(kw)
|
Weight
(kg)
|
|
900
|
<15
|
0.6-0.07
|
0.3
|
17-19
|
5.5
|
3500
|
|
1000
|
<20
|
0.6-0.07
|
0.5
|
16-18
|
5.5
|
4800
|
|
1100
|
<20
|
0.6-0.07
|
0.6-0.8
|
16-18
|
7.5
|
5200
|
|
1200B
|
<20
|
0.6-0.07
|
0.8-1.2
|
16-18
|
7.5
|
5530
|
|
1200A
|
<20
|
0.6-0.07
|
1-1.3
|
21-23
|
7.5
|
5500
|
|
1300
|
<20
|
0.6-0.07
|
1.5
|
16-18
|
15
|
7600
|
|
1400
|
<20
|
0.6-0.07
|
1.5-2
|
16-18
|
18.5
|
8550
|
|
1500B
|
<30
|
0.6-0.07
|
2.5-3
|
20-22
|
22
|
12000
|
|
1600
|
<30
|
0.6-0.07
|
4-5
|
20-22
|
30
|
14600
|
